- SKU: PA147CDV
- Vendor: ASUS

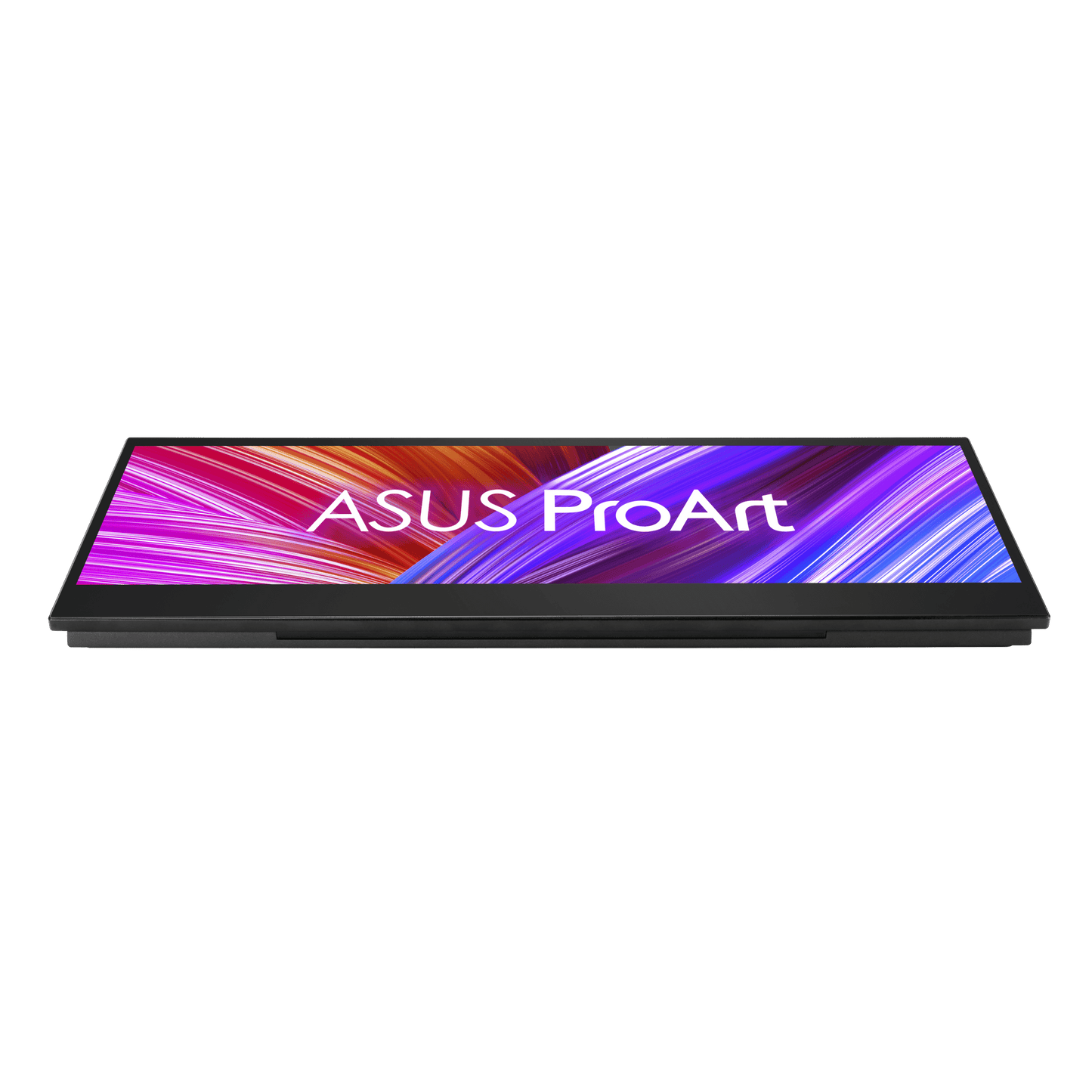

ASUS ProArt Display Ultrawide PA147CDV 14" Multi-Touch Monitor
ASUS ProArt Display PA147CDV Creative Tool – 14-inch, 32:9, IPS, Full HD (1920 x 550), 100% sRGB, 100% Rec.709, Color Accuracy ΔE < 2, Calman Verified, USB-C, 10-point Touch, MPP2.0, ASUS Dial, Control Panel, Compatible with Adobe Software
- 14-inch, 32:9 Full HD (1920 x 550) IPS panel with 10-point multitouch and Microsoft Pen Protocol 2.0 support
- Calman Verified and factory calibrated to Delta E < 2 for exceptional color accuracy, with 100% sRGB and 100% Rec. 709 coverage
- ASUS Dial and Control Panel provide shortcuts in supported Adobe creative software

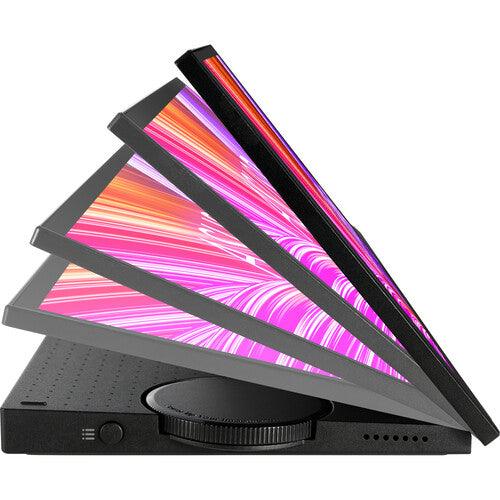

- Patented mechanical kickstand design folds out smoothly and props the display up in portrait or landscape orientation to fit different creator’s scenario
- Includes one standard HDMI® and two USB Type-C® (DP Alt mode) ports for variety devices connection
- ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience
Features
ProArt Display PA147CDV Creative Tool | Dial up Your Creative Flow
PA147CDV's 14" 32:9 IPS, Full HD display features ASUS Dial, Control Panel, 10-point multitouch, and MPP 2.0 support. It's Calman Verified, Delta E < 2, and covers 100% sRGB/Rec. 709, boasting the 2021 Good Design and 2021 Computex d&i Gold awards.
Built for Creators | Streamline Your Workflow
The customizable Control Panel puts the tools and functions you need front and center, allowing you to make adjustments quickly for a more efficient workflow. For easier multitasking, you can even use split-screen mode to show shortcuts for different apps side by side.
Ready for that Creative Spark
With ProArt Display PA147CDV, you're always ready when an idea comes. Take notes or sketch on the go with a stylus, or hook it up to your laptop with just a single cable.
Natural Writing or Drawing
With MPP 2.0 support, you’re able to use a pen or stylus to jot down or sketch ideas whenever inspiration strikes*.
Creativity with a Spin
ASUS Dial is designed to work with compatible Adobe software* such as Photoshop, Photoshop Lightroom Classic, Premiere Pro and After Effects**. Customized shortcuts enable you to zoom in and out of images or adjust brush size by simply turning the ASUS Dial. You can even tailor the default interface to suit your own work style.
Intuitive Control at Your Fingertips
Control Panel offers an intuitive interface unique to Adobe software*. PA147CDV's 10-point multitouch** provides easy access to tools, color, and key parameters for more efficient work.
Experience Full Color
Wide 100% sRGB and 100% Rec. 709 color gamut offers more vivid colors, ensuring deeper primary colors like red, green and blue, and richer secondary colors.
Rich Connectivity
PA147CDV offers a host of ports to cater to your creative needs. Two USB-C ports deliver video and power input over a single cable, with additional flexibility offered by the HDMI port for a connection to various input sources.
Specifications
| Model | ProArt Display PA147CDV |
| Display | Panel Size (inch) : 14 Pixels Per Inch (PPI) : 143 Aspect Ratio : 32:9 Display Viewing Area (H x V) : 344.22 x 98.60 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR≧10, H/V) : 178°/ 178° Pixel Pitch : 0.179mm Resolution : 1920x 550 Color Space (sRGB) : 100% Brightness (Typ.) : 400cd/? Contrast Ratio (Typ.) : 1200:1 Display Colors : 16.7M Response Time : 5ms(GTG) Refresh Rate (Max) : 60Hz Touch : Yes (PCAP Touch) Protection Glass : Yes Flicker-free : Yes LCD ZBD Warranty : Yes(3 yr) |
| Video Feature | ProArt Preset : Standard ProArt Preset : sRGB ProArt Preset : DCI-P3 ProArt Preset : Rec. 709 ProArt Preset : Scenery ProArt Preset : Reading ProArt Preset : Darkroom ProArt Preset : User mode1 ProArt Preset : User mode2 Color Temp. Selection : Yes(5 modes) Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y) Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 ) Color Accuracy : △E< 2 ProArt Palette : Yes QuickFit : Yes HDCP : Yes, 1.4 ProArt Chroma Tune : Yes Low Blue Light : Yes |
| Audio Feature |
Speaker : Yes(1Wx2) |
| I/O Ports | USB-C x 2 (DP Alt Mode) HDMI(v1.4) x 1 |
| Signal Frequency | Digital Signal Frequency : HDMI: 24 KHz~83 KHz (H) / 23Hz~60Hz (V) USB-C: 24 KHz~83 KHz (H) / 23Hz~60Hz (V) |
| Power Consumption | Power Consumption : 5.05 W Power Saving Mode : <0.5W Voltage : 100-240V, 50/60Hz |
| Mechanical Design | Tilt : Yes (+25° ~ 70°) Pivot : Yes (0° ~ 90° Clockwise) |
| Dimensions (Esti.) | Phys. Dimension with Stand (W x H x D) : 357.23 x 127.66 x 20.71 mm Phys. Dimension with Stand (W x H x D) : 357.23 x 127.66 x 20.71 mm ? Box Dimension (W x H x D) : 440 x 290 x 92 mm |
| Weight (Esti.) | Net Weight with Stand : 0.950 Kg Gross Weight : 2.3 Kg |
| Accessories (vary by regions) | Color pre-calibration report HDMI cable Power adapter ProArt Sleeve Quick start guide USB Type-C to A adapter USB-C cable USB-C to A cable Warranty Card |
| Certificate | TÜV Flicker-free TÜV Low Blue Light Calman Verified |
